What we do

We offer a wide range of cable harness products for almost every sort of applications i.e. custom made cable harnesses with the desired number of cables, terminals, connectors and enclosures – all quality tested and ready for installation.

  • Low Cost production
  • Wire and Cables 0,0123 mm2 – 35 mm2
  • Stripping, Marking, Tinning and Termination
  • Cable Harnesses
  • Wiring Systems
  • Assembling and box building
  • Complete Product Testing
  • Support Engineering
  • Prototyping - NPI
  • Competitive sourcing and purchasing organization

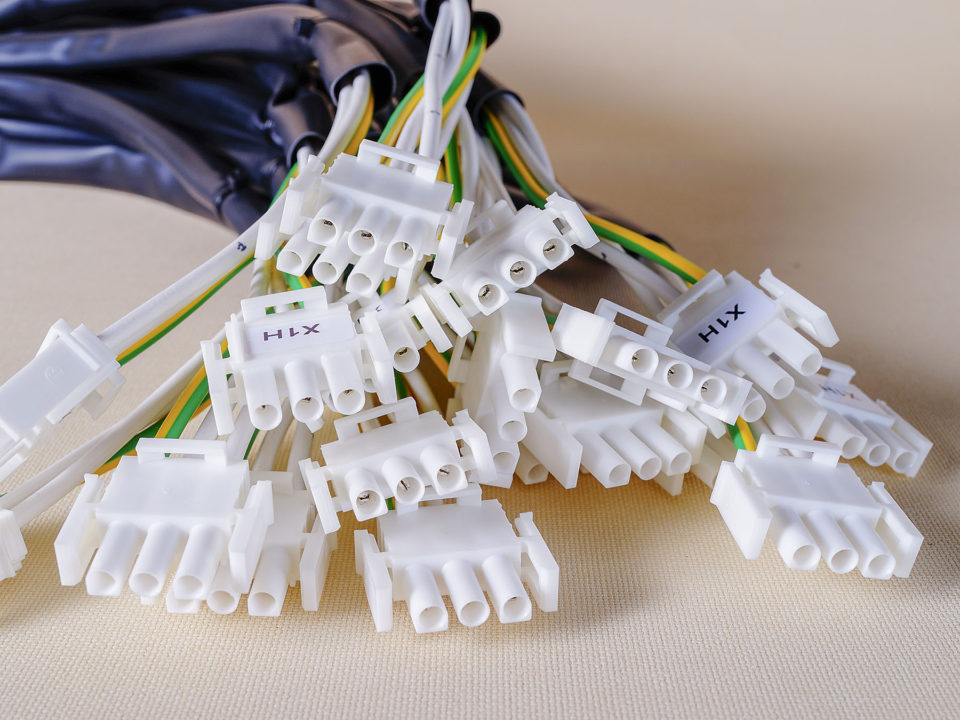

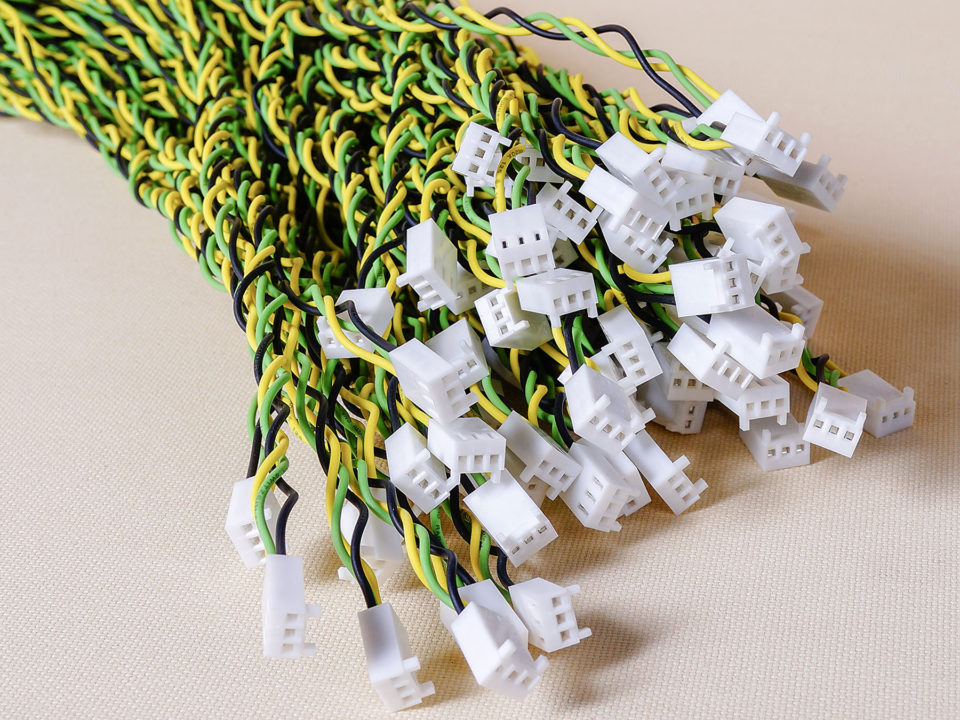

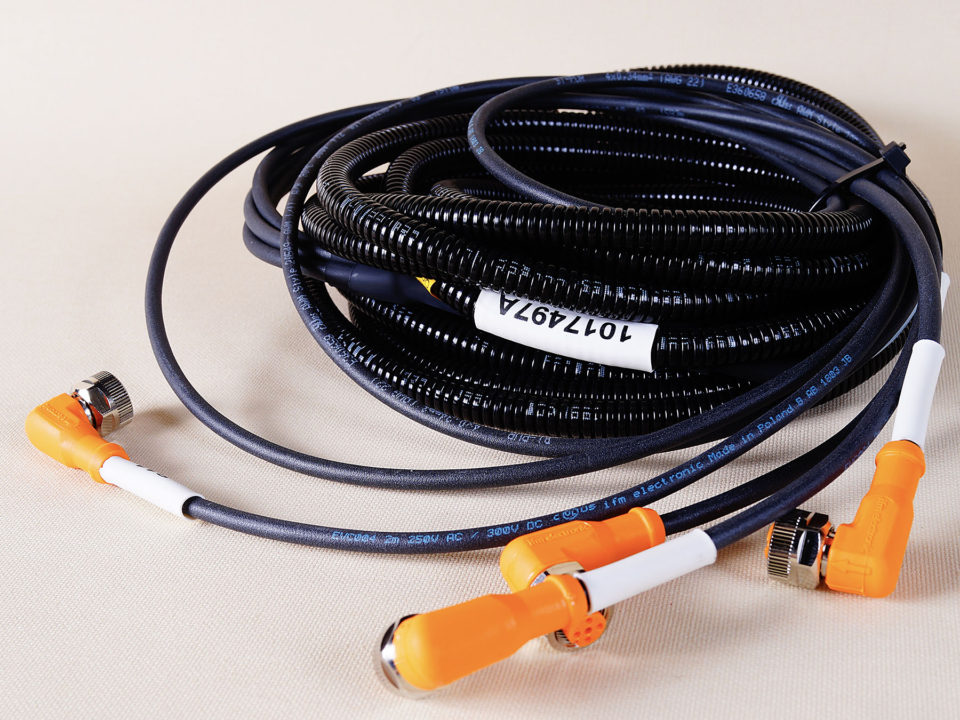

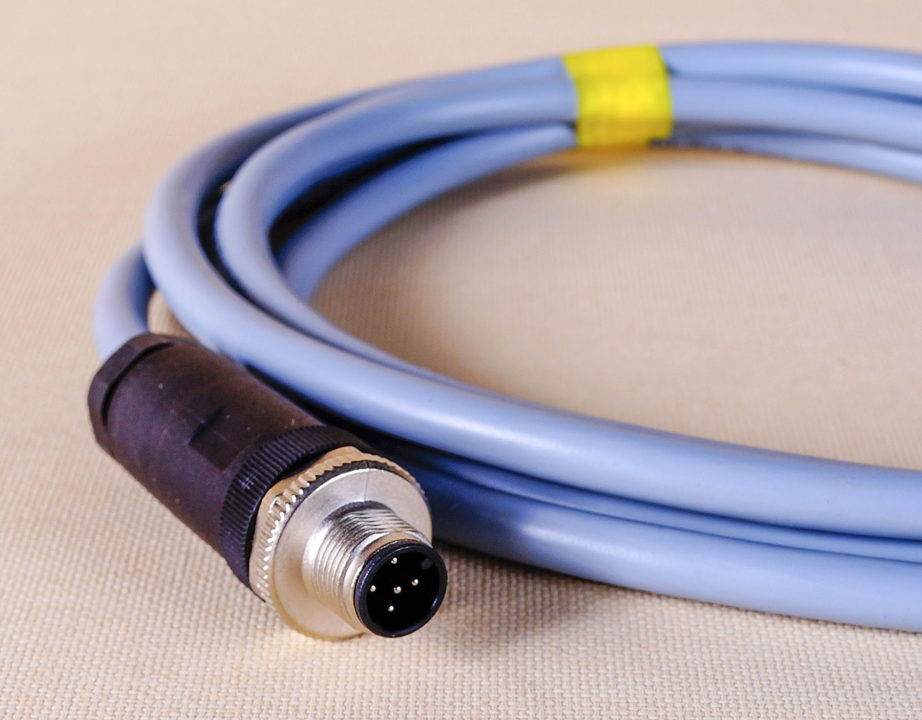

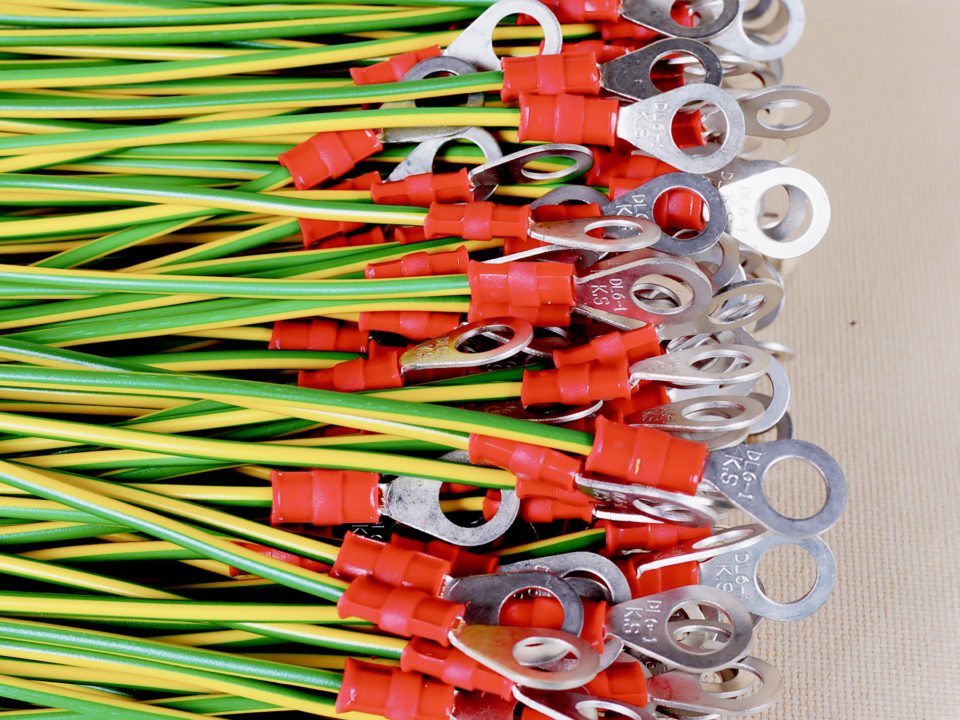

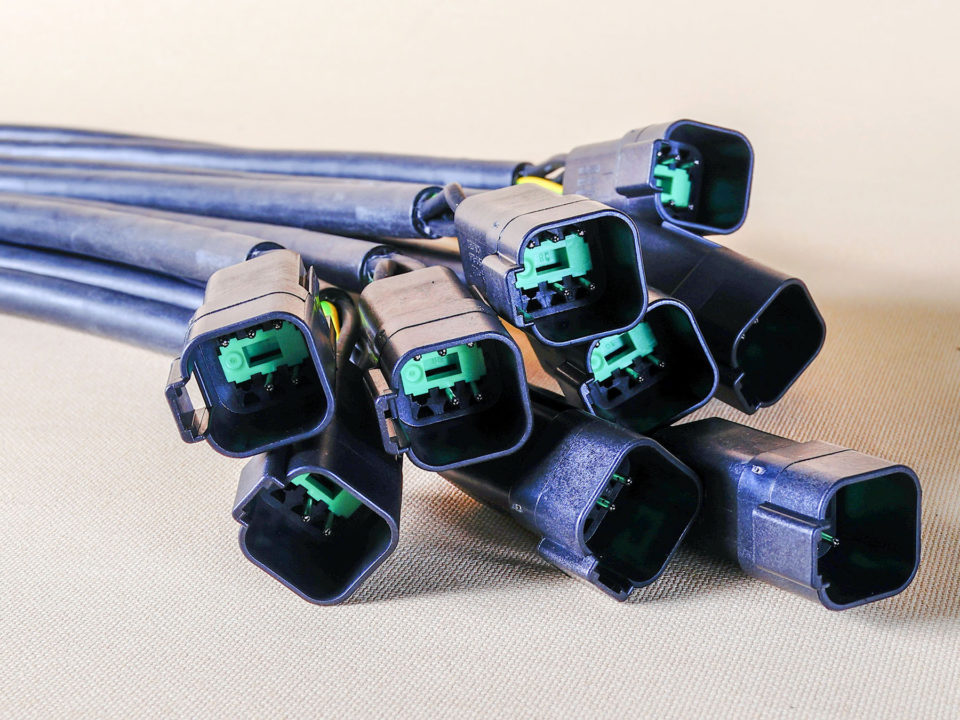

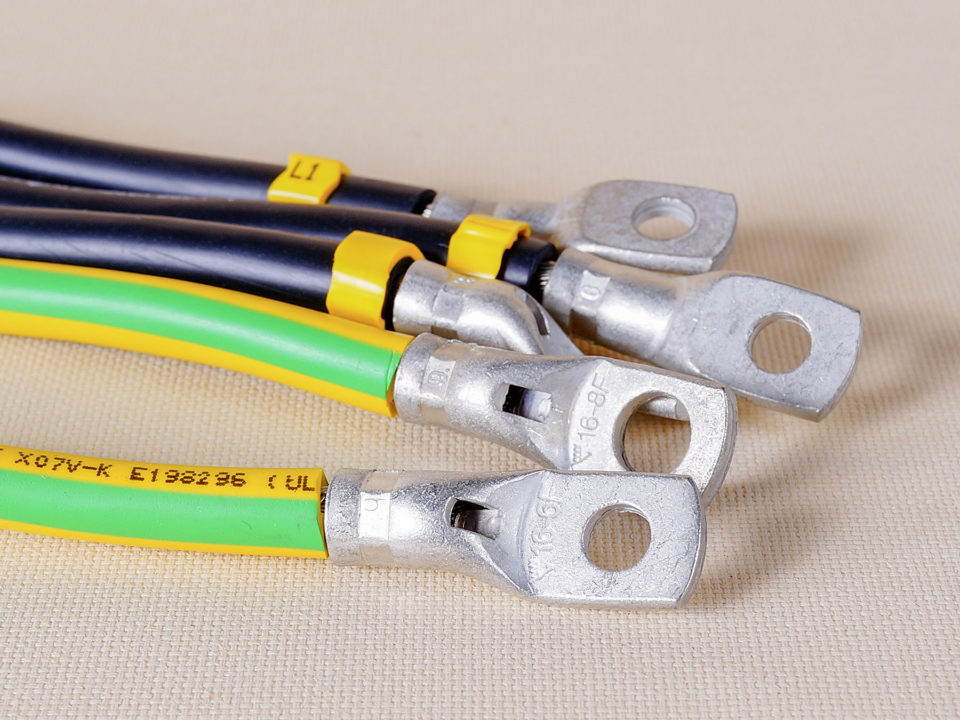

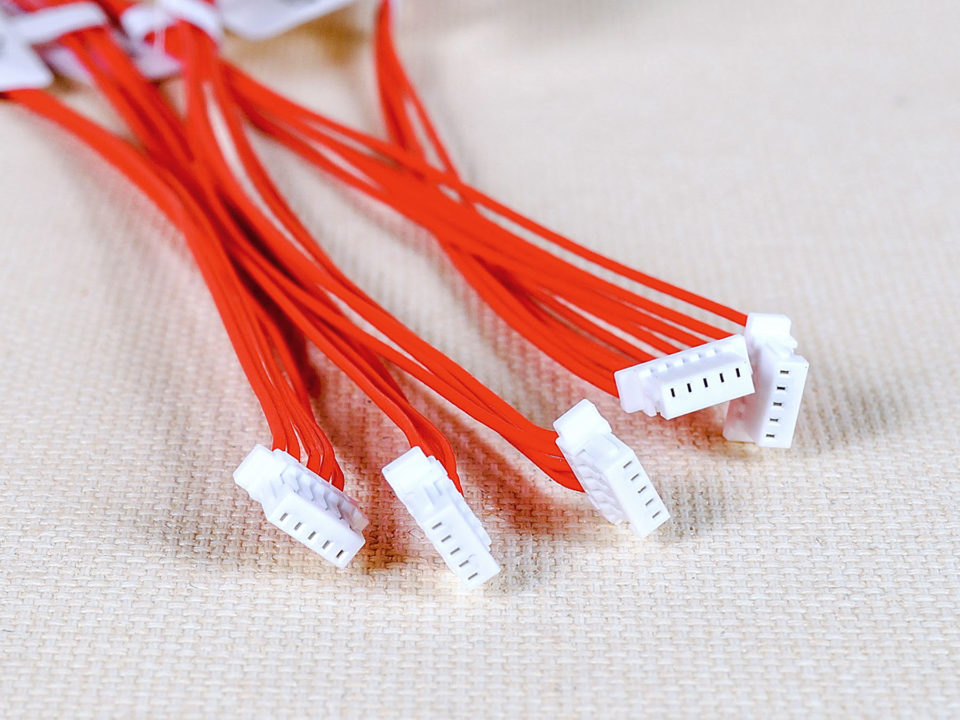

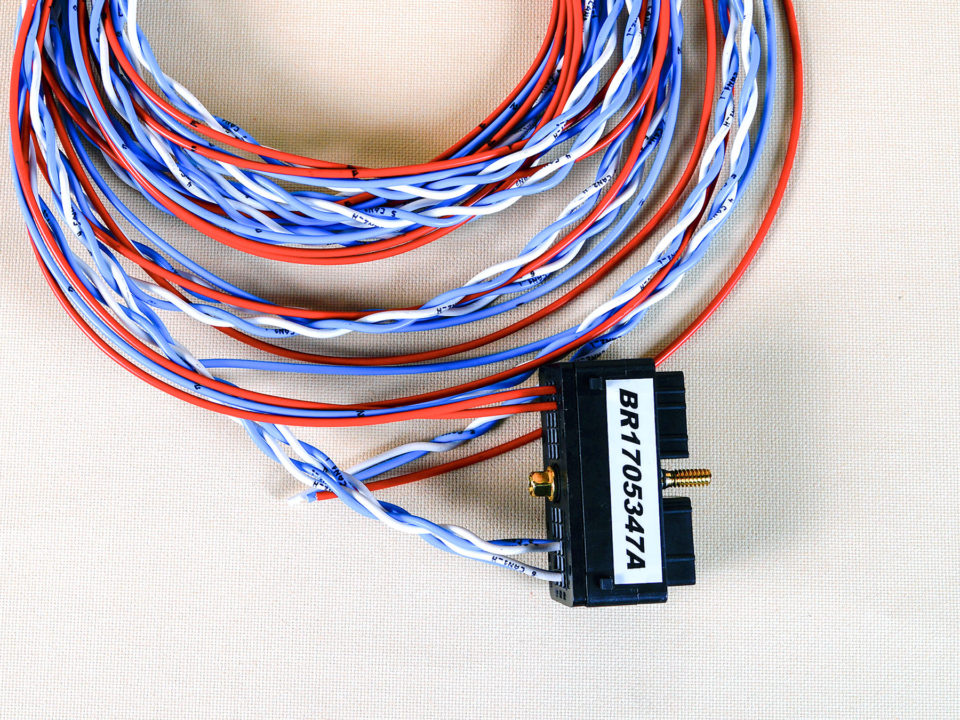

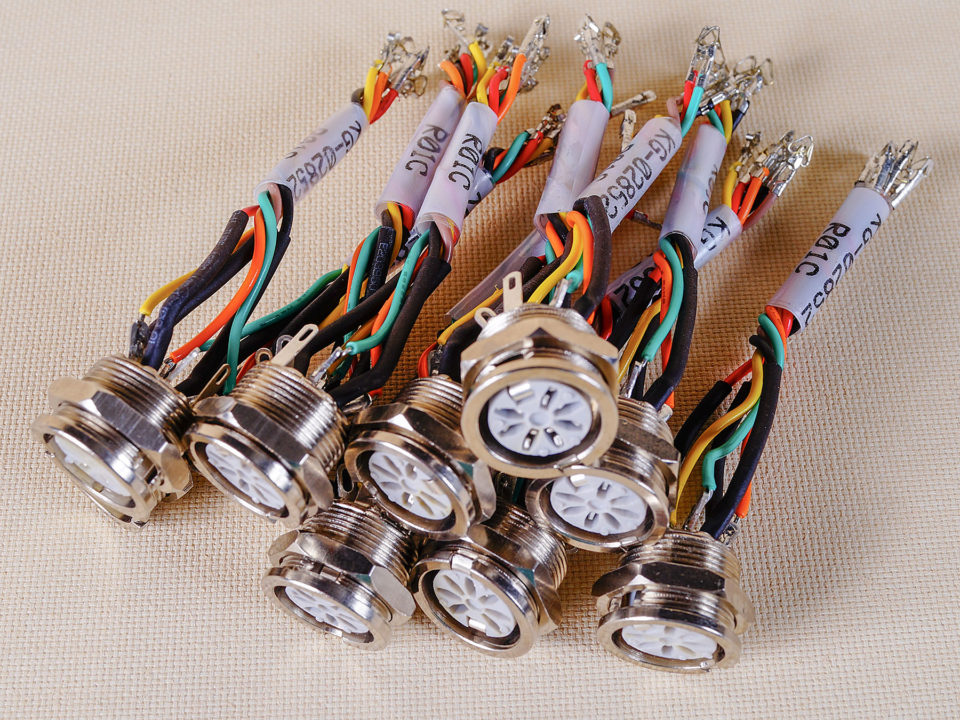

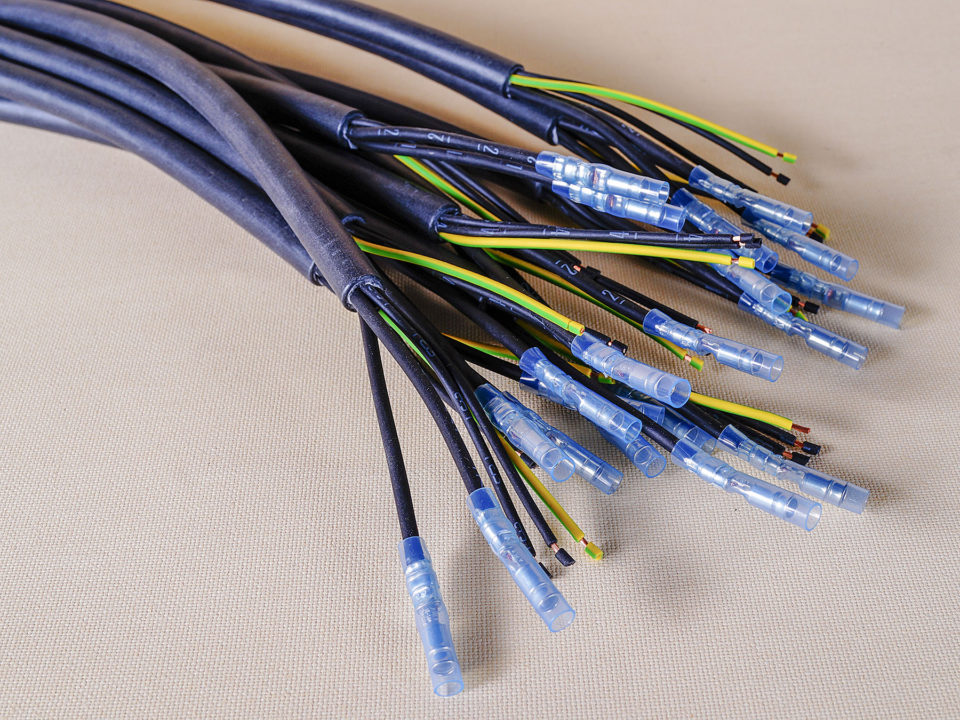

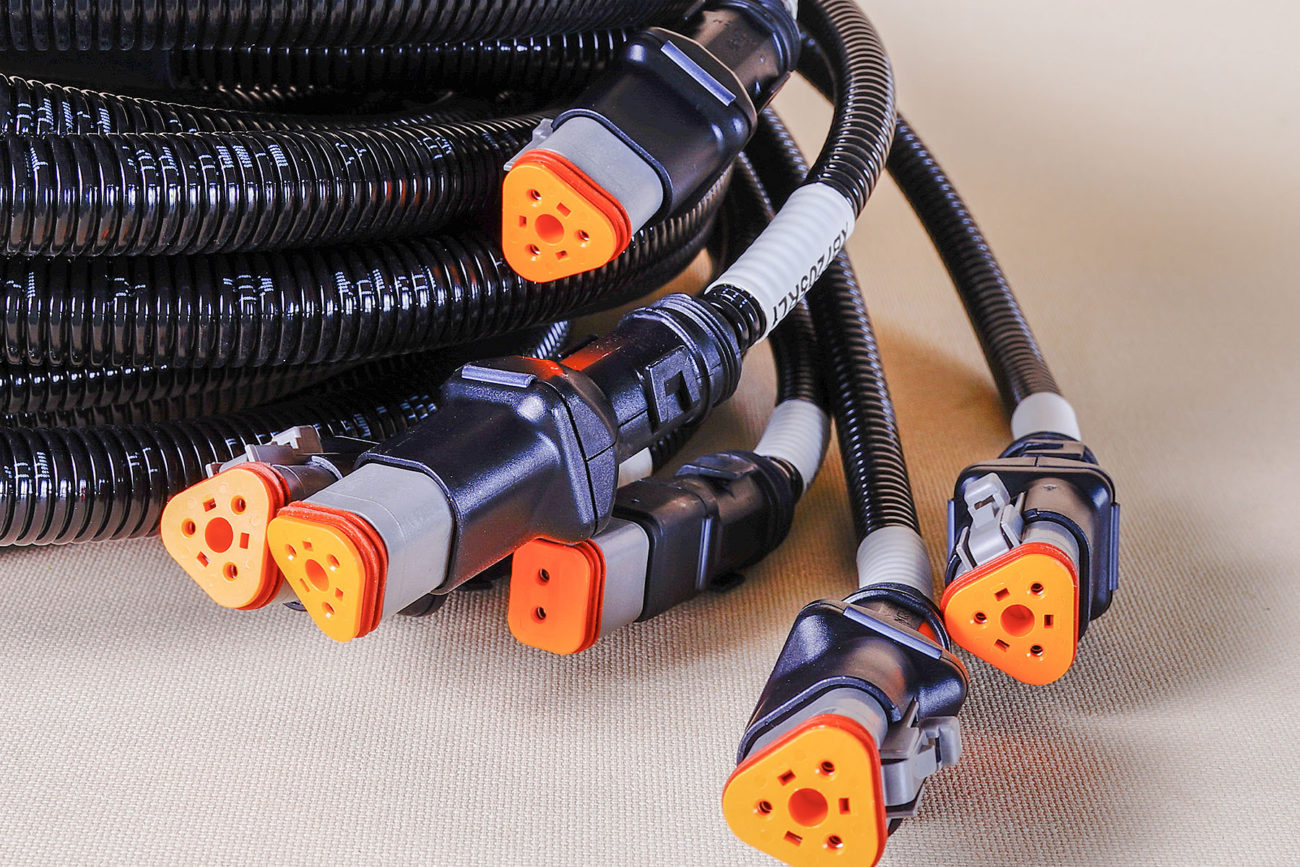

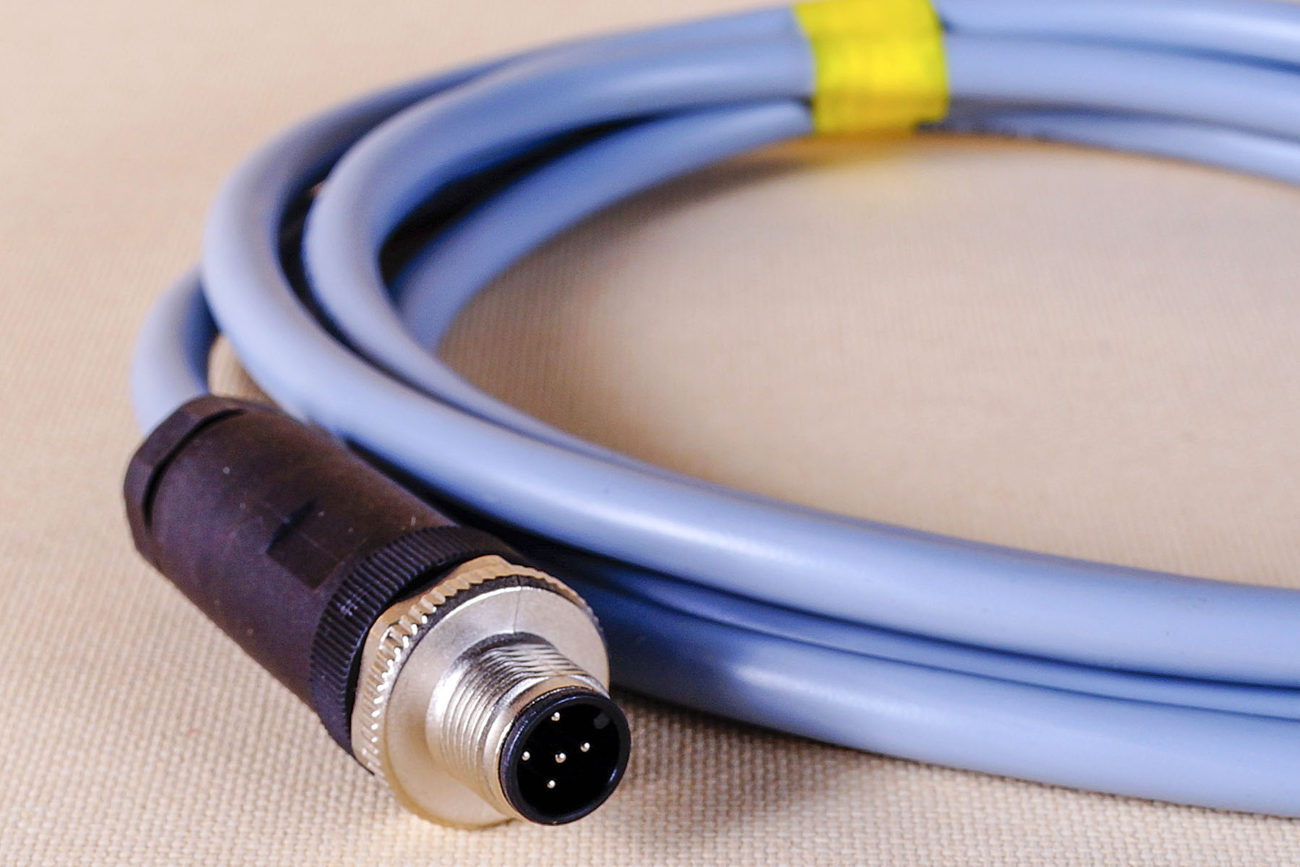

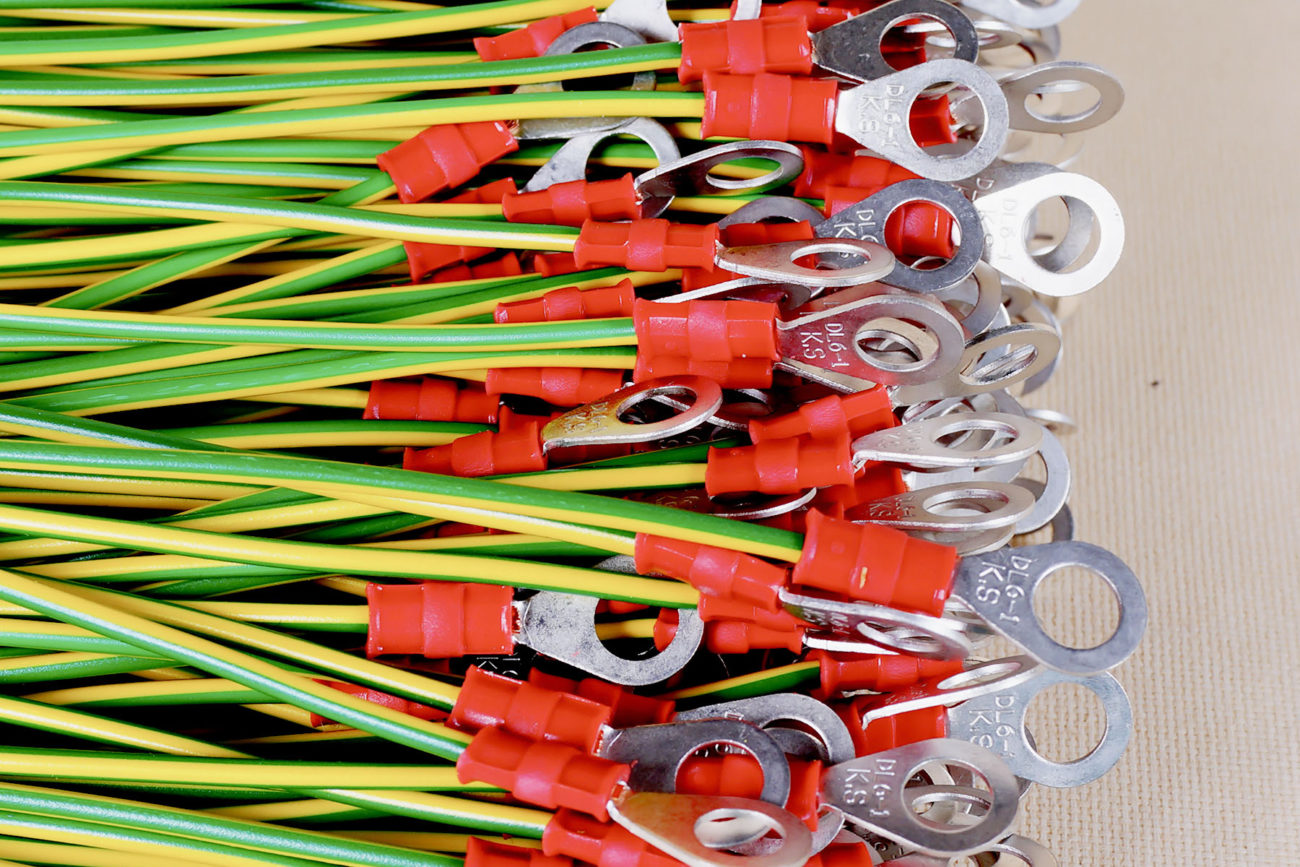

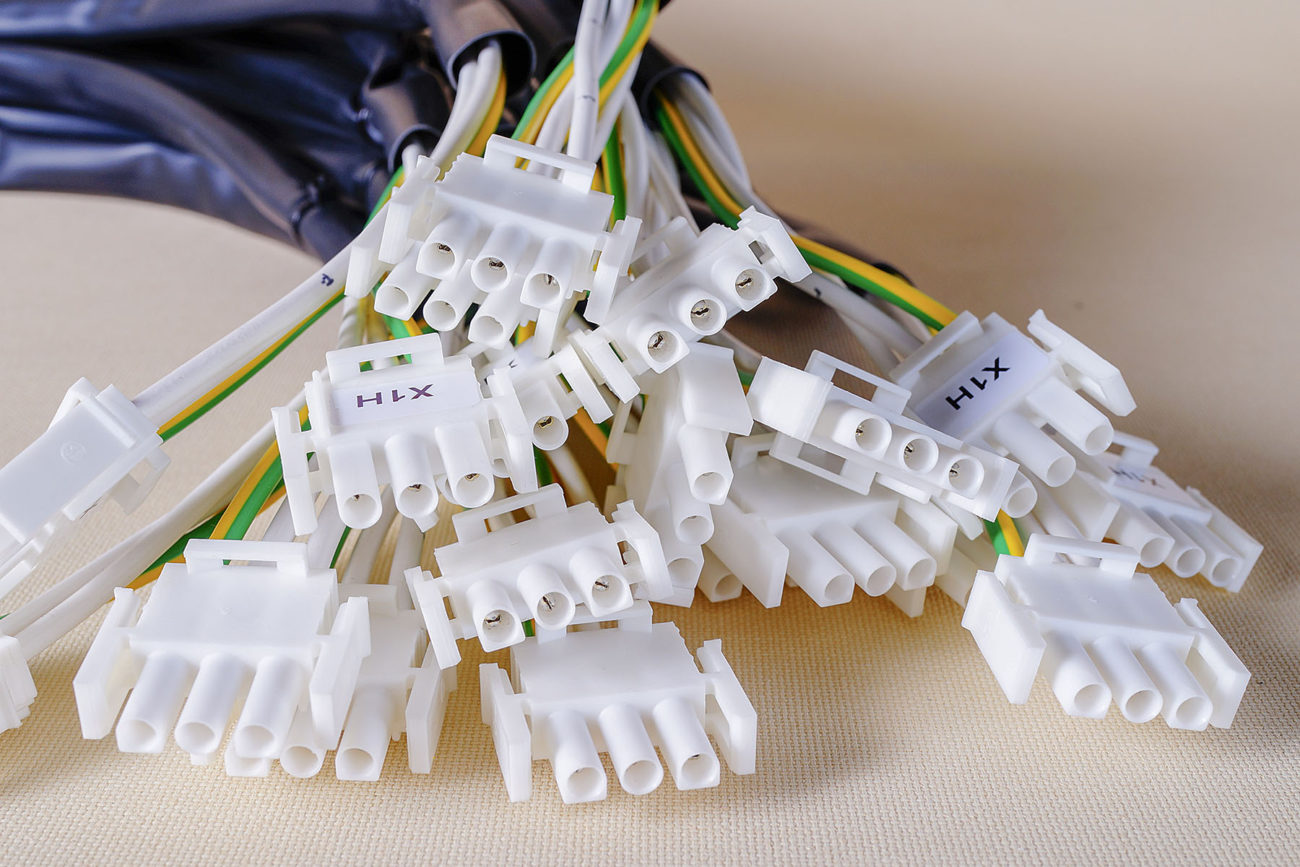

Examples

Machine list

Cut and Strip

Komax Kappa 330
• 0,22-35 mm2, AWG 24-AWG2
• Diameter max 16 mm
• Marking system
• Coiling system

Komax Kappa 320
• 00,05-10,0 mm2, AWG 30-AWG8
• Diameter max 10 mm
• Coiling system
• Ink marking, black & white
• Hot stamp marking

Crimp to Crimp

Komax Gamma 255
• 0,0123-2,5 mm2, AWG36 – AWG14
• 3 work stations
• Twisting Komax mci 782
• Led free Tinning Komax, ioc 785

Komax Alpha 530
• Wire cross section min. 0.13 mm²
• Wire cross section max. 6.0 mm²
• Wire length max. 65000 mm
• Length accuracy, Repetition accuracy: ± (0.2% + 1.0mm)
• Crimp force analyzer CFA+/CFA

Strip and Crimp

Komax bt 722
• 0,05-4,00 mm2, AWG30-AWG12

Mecal TT 1000
• Stripper SC-11
• 0,2-3,0 mm2, AWG24-AWG12

Mecal TT 1000
• Stripper SC-19
• 0,035-2,5 mm2, AWG32-AWG13

Wiedmuller Crimpfix R
• Isolated end ferrules 0,5-2,5 mm2

Stripping

Schleuniger UniStrip 2100
• 0,03-5,26 mm2, AWG32 – AWG10

Schleuniger UniStrip 2600
• 0,03-16 mm2, AWG32 – AWG6

Rittmeyer Am.All.Round
• 2-24 mm diameter
• 160 mm stripping lenght

Schleuniger Strip Series B300
• Conductor Cross Section – Strip
• 0.03 – 8 mm² (32 – 8 AWG)
• Conductor Cross Section – Cut Max. 2.5 mm2 (stranded wire)
• Raw Material Diameter Max. 7 mm
• Strip Length Max. 50 mm
• Pull-off Length Max. 30 mm

Stripping & Twisting

Rittmeyer, AV.Twist 15
• Outer diameter up to 4,5 mm
• Stripping length 1,5 mm – 15 mm

Cutting

JQ-6100
• 0,1-100mm

Taping

Ondal Smart

Presses

WDT TT 1416
• Up to 16 mm2, AWG 5

Testing equipment

Cirris Easy-wire CR
Cirris 1000RX
CT 50 pull tester
Mitutoyo Crimp high tester
Cirris 8100
